AYH2020 welding industry monitoring system is an industrial welding monitoring system. It adopts the analog high-definition imaging "Anba scheme", has the characteristics of high sensitivity, strong adaptability, vivid color and stable industrial performance. The signal of the device is transmitted to the industrial display through software and hardware processing and a series of shielding protection, so that the human eye can recognize and judge the welding quality, so as to adjust the process and improve the production quality and efficiency.

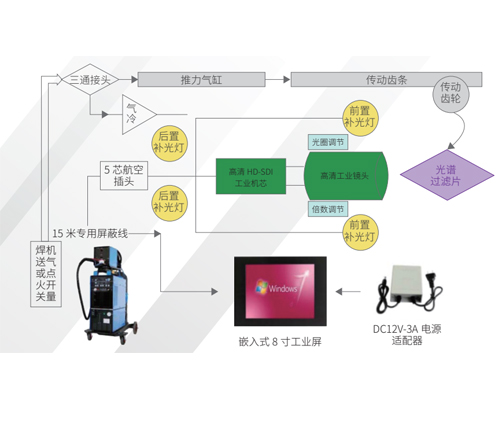

The system can be connected with 1 or 2 cameras, which can be used to observe the weld forming situation before and after the welding machine. Standard configuration 15m special shielding cable with connector, can real-time video to host SD card, can view video, tape recording, can adjust the amount of light into the camera, imaging contrast, white balance, red balance and other high-level menu.

The device is suitable for argon arc welding, gas shielded welding, plasma welding, electric welding, etc. It can be adapted to TIG, MIG, MAG, laser, composite arc suppression, to assist the operator to see clearly: molten pool, welding material, base metal and weld formation process, so as to adjust the parameters to control the welding quality.

The equipment parameters

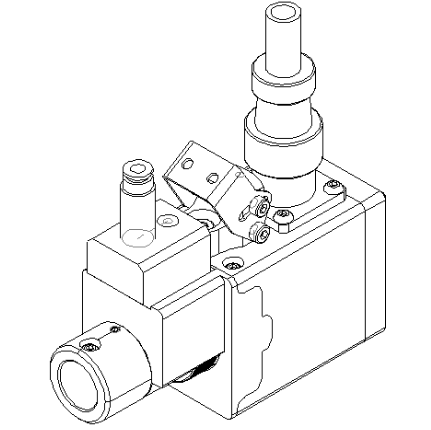

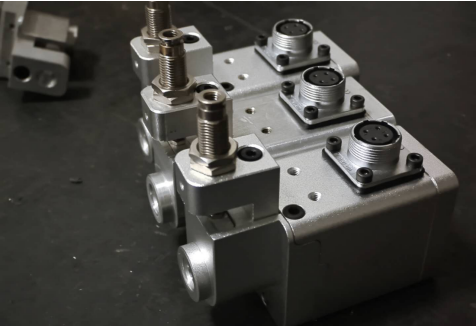

Front-end camera unit

Ambient pressure: 80kPa ~ 110kPa

Relative humidity: ≤95% (25℃)

Applicable temperature: -- 10℃ ~ +85℃

Corrosion resistance: < 0.01-0.1/ year

Protection class: IP54 (top waterproof)

Weight: 0.52 Kg

Shell material: alloy aluminum anodized

Dimensions: L122mm (without plug) ×W38mm×H72mm (without bracket)

Installation method: universal frame hoisting

Operating voltage: DC12±3 V (-1.5A)

Effective pixel: 1080P (1080×960)

Image mode: true color/brilliant color/black and white/grayscale/anti-infrared/anti-blue

Image balance: white balance/blue balance/red balance

Other Features: Reference Ruler/Bright Spot Repair/Strong Light Suppression/Wide Motion

Optical doubling: 5-20 times, 30 ~ 50mm installation can meet the requirements of 3 ~ 15mm weld detection

Low illumination: 0.00 Lux imaging

Gray level: 7

Input pressure: 0.7 ~ 0.9Mpa

Input temperature: 0 ~ 55℃

Shell insulation: ≥50MΩ

Output interface: standard 5-pin aviation plug

Conductor material: > 95% bare copper wire

Conductor structure: national standard

Conductor compatibility: adhesive

Shielding structure: > 90% density double layer system shielding

Bending radius: :6 ~ 15*D

Operating temperature: -30 ~ 85℃

Camera connector: standard 5-pin male head

Display end: standard 5-pin aviation plug

Power end: standard 5mm female head

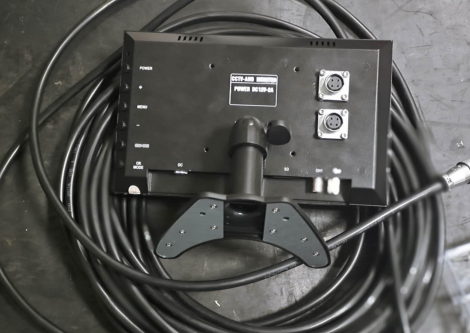

Industrial display

Screen size: 8 "/10" non-touch

Display ratio: 4:3

Interface type: HDMI/VGA/CVBS/AV/BNC

Vertical viewing Angle: 170°

Horizontal viewing Angle: 178°

Panel type: TFT

Average brightness: 350cd/m²

Resolution: 1024×768

Energy efficiency level: Level 1, no signal sleep for 3 seconds, access to signal wake up

Audio:

Installation: platform placement/cabinet embedded

Special composite cable

Order now

Product name:AYH2020 -- Welding industry monitoring system
